Basic Info.
Model NO.
700 Push-pull Acid Pickling line
Process Method
Push-Pull Shallow Trough Turbulence Hydrochloric a
Apu Layout Direction
Left to Right When Seating at Operation out Board
Max. Process Speed
70-100m/Min
Process Speed in Changing Coil
50-60m/Min
Point Move Speed
10-30m/Min
Transmission Way
AC Driving System, Speed Regulated by Variation
Acid Concentration Max
200g/L HCl, 125g/L Fe2+, 5 G/L Fe3+
Fluorine Content in Acid
Less Than 4ppm
Minimum Pickling Time
26s
Acid Trough Length in Total: About
50m
Transport Package
Plastic Film/Plywood Box / as Clients′ Required
Specification
it depends on the specification
Trademark
Moran or customized
Origin
Hebei, China
HS Code
722100000
Production Capacity
5-10 Sets
Product Description
General introduction of

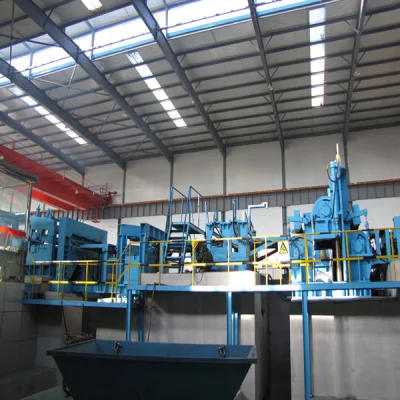

700 Push-pull Acid Pickling Production line
This production line is push-pull Acid Pickling Unit, which adopts the most advanced Shallow Trough Turbulence Acid Pickling technology. The equipment and technology provided are reliable advanced mature whole set equipments and technology that could fulfill the buyer's need of steady production and long-term running which are proved by actual production. This technology is featured by reasonable structure, high efficiency, low consumption, convenient operation, fewer malfunctions.
Design basis
Raw Material
Cold rolled carbon structural steel, high quality carbon structural steel and low alloy steel coil
type of steel: Q195, Q235 ,ST12 ,ST13, SPCC ,SPCD20#.
Hot belt temperature≤55 Degree Centigrade
Yield strength: 210~360N/mm2
Tensile strength: 270~610N/mm 2
Specification:
the thickness of steel: 2.0~~3.5mm
the width of the steel: 650~750mm
Inner diameter of coils to be pickled: Φ610mm/Φ760mm
Inner diameter of coils after being pickled: ф508mm
min Φ900mm
coil inner diameter: max Φ1800mm
min Φ900mm
coil unit weight max 13t
annual work plan: 300 days*24 hours
Energy: water, electricity and vapor
Product form: coils one after another
Production capacity: 200000tons/ Year
Specification:
the thickness of steel: 2.0~~3.5mm
the width of the steel: 650~750mm
Inner diameter of coils to be pickled: Φ610mm/Φ760mm
Inner diameter of coils after being pickled: ф508mm
min Φ900mm
coil inner diameter: max Φ1800mm
min Φ900mm
coil unit weight max 13t
annual work plan: 300 days*24 hours
Energy: water, electricity and vapor
Product form: coils one after another
Production capacity: 200000tons/ Year
Process and equipments
coil loading car(1,2) decoiler units(1,2) decoiling scraper(1,2) Five roll leveler(1,2) crop shear1# tensioner 1#Vertical guide roller pickling1 pickling 2 pickling 3pickling 4washing 1washing 2washing 3washing 42# vertical guide roller blowing machine Hot air dryer automatic CPC2# Tensioning machine shearing machine steeringpinch roller Coiler unit (EPC) outlet coil unloading trolley
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
For More information, Please feel free to contact us!
Thomas Qian
Website: moranchina.en.made-in-china.com
700 Push-pull Acid Pickling Production line
This production line is push-pull Acid Pickling Unit, which adopts the most advanced Shallow Trough Turbulence Acid Pickling technology. The equipment and technology provided are reliable advanced mature whole set equipments and technology that could fulfill the buyer's need of steady production and long-term running which are proved by actual production. This technology is featured by reasonable structure, high efficiency, low consumption, convenient operation, fewer malfunctions.
Design basis
Raw Material
Cold rolled carbon structural steel, high quality carbon structural steel and low alloy steel coil
type of steel: Q195, Q235 ,ST12 ,ST13, SPCC ,SPCD20#.
Hot belt temperature≤55 Degree Centigrade
Yield strength: 210~360N/mm2
Tensile strength: 270~610N/mm 2
Specification:
the thickness of steel: 2.0~~3.5mm
the width of the steel: 650~750mm
Inner diameter of coils to be pickled: Φ610mm/Φ760mm
Inner diameter of coils after being pickled: ф508mm
min Φ900mm
coil inner diameter: max Φ1800mm
min Φ900mm
coil unit weight max 13t
annual work plan: 300 days*24 hours
Energy: water, electricity and vapor
Product form: coils one after another
Production capacity: 200000tons/ Year
Specification:
the thickness of steel: 2.0~~3.5mm
the width of the steel: 650~750mm
Inner diameter of coils to be pickled: Φ610mm/Φ760mm
Inner diameter of coils after being pickled: ф508mm
min Φ900mm
coil inner diameter: max Φ1800mm
min Φ900mm
coil unit weight max 13t
annual work plan: 300 days*24 hours
Energy: water, electricity and vapor
Product form: coils one after another
Production capacity: 200000tons/ Year
Process and equipments
coil loading car(1,2) decoiler units(1,2) decoiling scraper(1,2) Five roll leveler(1,2) crop shear1# tensioner 1#Vertical guide roller pickling1 pickling 2 pickling 3pickling 4washing 1washing 2washing 3washing 42# vertical guide roller blowing machine Hot air dryer automatic CPC2# Tensioning machine shearing machine steeringpinch roller Coiler unit (EPC) outlet coil unloading trolley
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
For More information, Please feel free to contact us!
Thomas Qian
Website: moranchina.en.made-in-china.com
