EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car

Introducing the "EcoHauler 5000" electric pick-up, perfect for mining areas. Our factory produces off-road SUVs with 5 seats and large loading capacity. Zero emissions and strong horsepower.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Our Advantages
  • Detailed Photos
  • Product Parameters
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
NH1032EV2
Gearbox
Automatic
Drive
AWD
Displacement
Electric
Conditon
New
Braking System
Electromagnetic
Body Type
Closed
Body Style
SUV
Fuel Type
Electric
Warranty
12 Months
After-sales Service
Parts Supplying
Motor Power
110 Kw
Battery Voltage
347 V
Tyre
265/65r17
Charging Time
1~1.5 Hour
Driving Distance
500 Km
Driving Hour
6-7 Hours
Type
PickUp
Fuel
Electric
Transport Package
Nude Packing
Specification
Mining Application
Trademark
KNOW-HOW
Origin
China
HS Code
8704210000
Production Capacity
10, 000 Units / Year

Product Description

Our Advantages

As mining equipment factory , we not only supply the new energy Electric machinery or vehicles , but also we give full solution to mining industry .


This pick up is especially adjusted by our production line , and equiped with our special power driving system , to make its performance stronger and more endurable in mining area .

It saves more than diesel pickup .

Generally we suggest our clients purchase  this pickup together with other machines , we will give discount price for this vehicle .
Battery Power
Battery Type: LFP Type
Rated Capacity 173 AH
Voltage 347 V
Rated Energy 60.16 KWH
Energy Ratio >150 WH/KG
SOC working range 8%~10%

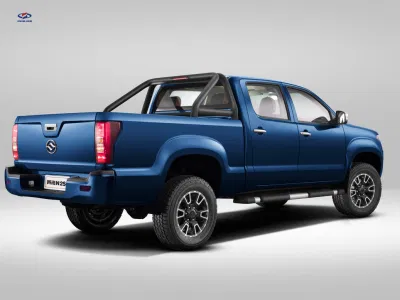

Detailed Photos

EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car
EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car
EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car
* North American style, large comfortable space

* Quick and efficient, available battery charging or swapping

*Strengthened power structure
* Professional team designated for mining

* Maintenance free, oil-free, less electricity, zero emission

* Limited speed, anti-explosion and anti-collision to ensure safety
EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car

Product Parameters

Item Parameters Item Parameters
Body (length x width x height) (mm)  5560×1840×1830 Front suspension type  Spiral spring of double wishbone
Wheelbase (mm)  3405 Rear suspension type  Plate spring
Front/rear tread (mm)  1548/1548 Tire specification  265/65R17
Ground clearance (mm)  215 Speed km/h  80 (adjustable speed limit)

Item

Parameters

Item

Parameters

Motor power

110kw

Charging time

80% charge in 1 hour

Peak motor torque

800Nm

Battery swapping structure

5 minutes to swap the battery

Max motor speed

4000rpm

Gradeability

It can climb 30° slopes at full load

Battery type

Lithium ion battery

Endurance mileage

250km

Battery level

60kwh

Driving mode

Part-time 4WD (BorgWarner Transfer Case)

Battery voltage

347V

Maximum speed

80km/h (adjustable speed limit)

Aided driving

Collision warning (optional)

Battery maintenance

Reduce battery loss by battery swapping

Certifications

EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car
EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car
EV Pick-up for Mining Area, off-Raod SUV, Large Volume Loading Capacity, 5 Seats, Pure Electric Drive Strong Horsepower Pickup, Zero Emission Car

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the lead time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.


6. How long will it take for the electric charging ?
A: 2 hours

7. How long will it take for the electric charging ?
A: 2 hours

8. How long will it take for replacing the battery ?
A: 5~10 mins


For more detailed product information or for sound proposal for your mining ,please send email to me
