Product Description

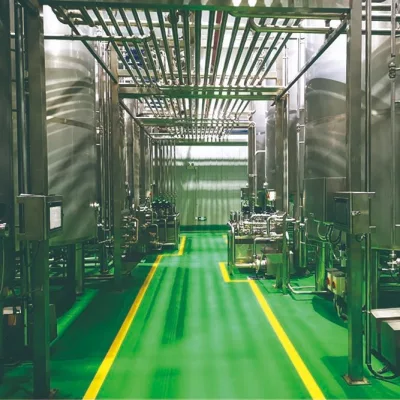

The operating principle of the full auto CIP cleaning system means that the tank body,pipelines,pumps and
all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the
equipments,all cleanings are done in the closed circuit.
This system adopts the PLC program to control,with the colored touch-screen to operate and display the whole
process flow and also the each controlling parameter.The temperature of the cleaning liquid can be set.
It can set the PH value,the cleaning time,cleaning sequence,and also the refluence PH value.With the system
malfunction alarm device.
The main equipment of the system includes:
CIP cleaning liquid storage tanks(include acid tank,alkali tank,hot water tank,clear water tank);
Two single layer tanks for concentrated acid and alkali;
CIP forward and return pumps;
Two diaphragm pumps for acid/alkali concentrate;
Heat exchanger(plate or tubular type);
One electrical appliance box;
One set of controlling pipe and valve component;
One set of auto-performance components and parts and the electrical appliance;
CIP cleaning liquid storage tank:1000L-10000L;
According to the customer's requirments,we can make the double circuit,three circuit,four circuit and so on,meanwhile we can make multi circuit operating at the same time.
The heating way:plate type,coil tube type,tubular type.
CIP Tank size | 1000L-10000L | |
CIP tank type | Alcali tank,acid tank,hot water,clean water tank,water recycle tank | |
Cleaning recycles | Single circuit,double circuits,three circuits,four circuits | |
Heating method | Coil pipes inside,plate heat exchanger ,tubular heat exchanger | |
Automatic types and charastics | 1,Auto-flow control for the cleaning solution. 6,System auto alarm-device. | |
Related machinery of fruit processing line
Fruit storage silo-- Washing, sorting machine-- Grading/classifier machine
Squeeze extractor--Juice refiner-separator-evaporator-- Juice concentrate product
Fruit flesh/pulp collector-sterilizer--filling machine-fruit flesh
Essential oil refiner-fruit oil
Fruit residues collector-animal feed
Soaking extraction, pre-cooking, pulping, quick freeze, stemmer, ultra-filtration, decolor, destoner, crusher, stone washer, brusher washer, pine apple extractor, refiner, enzymolysis, filtration, CIP cleaning system
Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
7) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.
8) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
