Basic Info.
Model NO.
CLW5162GYX
Seats
≤5
Horsepower
150-250hp
Engine Capacity
<4L
Storage
Oil
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Nylon Tire, Tubeless, Radial
Condition
New
Gearbox
6 Forward & 1 Reverse Gear
Chassis Brand
Dongfeng, Isuzu, Foton, FAW, JAC, etc.
Tank Shape
Square Round, Round
Oil Pump
Optional
Hose Reel with Filling Gun
Optional, Length Can Be Longer as Per Request
Delivery Time
35 Days
Load Weight
8tons 8t 10t 10tons 12t 12tons 15t 15tons
Transport Oil Type
Diesel, Petrol, Gasoline, Oil, etc.
Tank Material
Carbon Steel, Stainless Steel or Aluminum Alloy
Oil Dispenser
Chinese Famous Brand
Oil Vapor Recovery System
Optional
Warranty
One Year
Color
Customized
Engine Type
Cummins Engine
Total Volume
10cbm 10000L 10000liters 12000liters 12000L
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
10cbm 12cbm 15cbm 10000L 12000L 15000L 10000liters
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Product Description

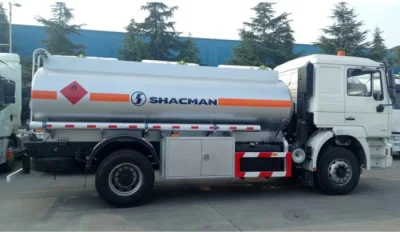

Shacman F2000 15000L Fuel Refueling Truck Gasoline Bowser Mobile lubrication Dispenser Tanker
Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Condition | New condition/LHD/4X2 | ||
Chassis | Brand | Shacman | |
Curb weight(kg) | 8400 kg | ||
Wheelbase(mm) | 4600 mm | ||
Dimensions(mm) | 8400X2460X3100 mm | ||
Front/Rear Axle loading(kg) | 5800/10000 kg | ||
Wheel track (front/rear) (mm) | 1880/1800 mm | ||
Front/Rear overhang(mm) | 1430/2370 mm | ||
Approach/Departure angle(°) | 26/20 | ||
Max. driving speed(km/h) | 95 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 9.00R20 | ||
Transmission | Manual type, 6 Forwards and 1 reverse | ||
Cab | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | Weichan engine | |
Model | WP10.290E32 | ||
Fuel type | Diesel | ||
Displacement(ml) | 9726 ml | ||
Power(kw) | 213kw | ||
Horsepower(HP) | 290HP | ||
Cylinder number | 6 | ||
Emission standard | Euro III | ||
Fuel Tank | |||
Fuel tank | Capacity(cbm/liters) | 10~15cbm/10000~15000Liters | |
Tank material | Tank material:Q235 high tensile strength steel. | ||
Thickness(mm) | 5mm of tank and 6mm of end plate | ||
Compartment No. | 1 | ||
Baffle | 1 No,4 mm carbon steel | ||
Manhole cover | 1 manhole cover, ∮500mm 1 set with breather valve | ||
Bottom Valve | 1 set of API Pneumatic Bottom Valve | ||
Discharging valve | 1 set ∮ discharging valve | ||
Handrail | Two sides | ||
Ladder | At rear of tank | ||
Painting | Color and design as customer's requirement |
