Track Maintenance Using Jg Road-Rail Vehicles to Maintain and Replace Outdated Track Components

Upgrade your railway track maintenance with our Jg Road-Rail Vehicles. Replace outdated components with ease. Factory-direct quality and service.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JG-LT
Drive Type
Internal Combustion Drive
Bucket Capacity
Customization
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Range of Operationtboom Length Arm Lengt
45kn
Back-End Radius of Gyration
1980mm
Vibration Frequency
35Hz~63Hz
Transport Package
Nude Packing
Specification
6100*2800*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year

Product Description

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
Track Maintenance Using Jg Road-Rail Vehicles to Maintain and Replace Outdated Track Components

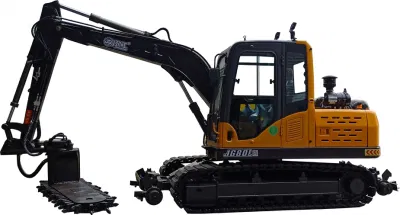

Track Maintenance Using Jg Road-Rail Vehicles to Maintain and Replace Outdated Track Components The hydraulic turnout tamping machine is suitable for tamping operations of complex and difficult turnout sections in line
maintenance. Turnout switch parts, turnout connecting parts, turnouts and rail protection parts can be tamped. The machine
is easy to operate, light in weight, high in operation efficiency and low in failure rate, and can meet the needs of railway
ballast tamping operations.
SPECIFICATIONS
RANGE OF OPERATION Boom length 3300mm
Arm length 1850mm
Maimum digging force 45KN
Back-end radius of gyration 1980mm
BALLAST TAMPING ATTACHMENT Vibration frequency 35HZ~63HZ
Exciting force ≥21KN
The maximum insertion depth of the pick body (the bottom of the concrete sleeper) ≥90mm
Angle of rotation 45°
Working efficiency 55-60pcs sleepers /H
DIMENSION (Length*width*height) travel position 6100*2800*2650mm
Roller gauge 2600mm
Track Gauge 1570mm
Width Of Crawler 400mm
Ground clearance of counterweight 780mm
Min ground clearance 280mm
TECHNICAL PARAMETERS Applicable railway gauge 1435mm(customizable)
Angle of rotation 360°
Machine weight 8000~8500kg
Engine model YUCHAI
Rated Power 48~62.5KW
Rated Speed 2200r/min
Fqt Fuel Quantity ≥4L/h
Capacity Of The Fuel Tank 110L
Hydraulic Tank Capacity 110L
