Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank

Get high-quality Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank from our factory. Improve your hydrographic printing process now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Why Choose Us
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
TSRS3000
Dipping Area
L: 280cm X W: 90cm X H: 50cm
Electric Power
1sets, 208-240V, Single Phase, 50 Hz, 9000W
Pallet
Wooden Pallet
Heat Power
3kw
Pump
220V, Single Phase, 50 Hz, 60W
Transfer Mode
Direct Printing
Method
Water Transfer Printing Rinse
Usage
Plastic, Metal, Wood, Leather, Cloth, etc
Transport Package
Wooden Pallet
Specification
customize accept
Trademark
TSAUTOP
Origin
Zhejiang, China
HS Code
842489999
Production Capacity
5 Sets/Week

Packaging & Delivery

Package Size
310.00cm * 110.00cm * 140.00cm
Package Gross Weight
550.000kg

Product Description



Product Description

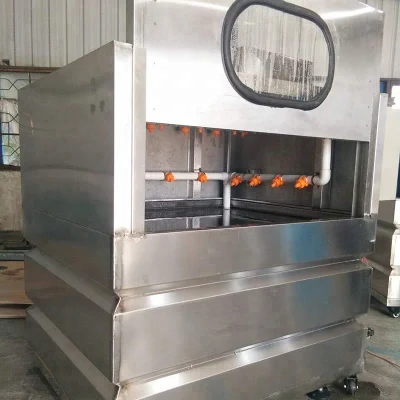

TSAUTOP CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank

(offer water transfer printing service)
TSAUTOP®  hydrographics rinsing tank with CE certification is a simple, safe, useful, eco and efficient hydro washing machine. It is very suitable for small dipping business owners.

TSAUTOP®  hydrographics rinsing tank has a superb welding process and a humanized structural design. All welded parts are welded with 304 stainless steel welding wire. All the welding marks are polished to ensure no leaks. So, it can guarantee no water leakage for 5 years. TSAUTOP® hydrographics rinsing tank is made of 2.5mm thick 201 stainless steel and the cover is made of 1.2mm 201 stainless steel, framed of 2mm thick 304 stainless steel square pipe and equipped 6pcs universal wheels and thick feet, all of these ensure that the hydrographics rinse tank can hold enough water without deformation. Thick stainless steel can ensure to resist acid, alkali, salt and corrosion. All of these ensure TSAUTOP® hydrographics rinsing tank long life.

TSAUTOP® hydrographics rinsing tank is equipped low-noise, strong-flow and long-life stainless-steel water pump, ensure flush the film slag on the surface of products. 1500W pump for 1.2m tank,2250w for 2-3m tank, we can make the tanks with various voltages as your requirements, such as single phase 110v,220v,3phases 220v,380v or the other special voltages. There have some high-pressure spray nozzles at the end of water outer ensure the water flushed farther.

TSAUTOP® hydrographics rinsing tank equipped 32pcs (1.2m tank)/80pcs (2.4m tank)/115pcs (3m tank) high-pressure spray nozzles, all nozzles are installed in the five sides, and the bottom nozzles with separate switch. When rinse light articles, you can turn off this switch. AND we equip stainless steel square pipe as holder and spread stainless steel stencil on the holder. So, it can rinse all kinds of articles not lost into the tank.

The electric box and wires of TSAUTOP® hydrographics rinsing tank is equipped safely. It is equipped of electric lift door, can be opened and closed with one key. It is equipped digital timer, you can set the rinsing time as you need, when the rinsing reaches the set time, the machine will stop rinsing. All working units are equipped of circuit breaker protection switches and emergency stop switch, ensure the safety of human and machines in the emergency. All wires are concealed and packed of protective pipe to prevent electricity leakage. All tanks have equipped earth wire to avoid electric shock.

TSAUTOP® hydrographics rinsing tank is easy to install and operate. The electrical wire connecting is simple. Each wire sticks a number, you connect the wire as the number.  We supply detail manual book. We have different dimensions hydrographic tank, you can choose the suitable one according to your working items.


Item NO. TSHRTA1200 TSHRTA2400 TSHRTA3000
Machine Size  Overall Dimensions L: 120CM X W: 100CM X H: 135CM L: 240CM X W: 100CM X H: 135CM L: 300CM X W: 100CM X H: 135CM
L: 47.2 Inch X W: 39.4 Inch X H: 53.1Inch L: 94.5 Inch X W: 39.4 Inch X H: 53.1Inch L: 118.1 Inch X W: 39.4 Inch X H: 53.1Inch
 Rinsing Area dimensions L: 110CM X W: 90CM X H: 110CM L: 220CM X W: 90CM X H: 50CM L: 280CM X W: 90CM X H: 50CM
L: 43.3Inch X W: 35.4 Inch X H:43.3 Inch L: 86.6 Inch X W: 35.4 Inch X H: 19.7 Inch L: 110.2 Inch X W: 35.4 Inch X H: 19.7 Inch
Machine Material Thickness =2.5mm+-0.2mm 201# SS
Machine Main Components Heating Elements 1Set, 208-240V, Single Phase, 50 HZ, 6000W 1Sets, 208-240V, Single Phase, 50 HZ, 9000W
Electric Lift Door 208-240V, Single Phase, 50 HZ, 150W
Water Recirculation System Stainless Pump, 220V, Single Phase, 50 HZ, 1500W/2HP Stainless Pump, 208-240V, Single Phase, 50 HZ, 2250W/3HP
Nozzle 32pcs High Pressure 80pcs High Pressure 115pcs High Pressure
Control Box 1.Master Power On/Off Switch 1.Master Power On/Off Switch
2.Pump On/Off Switch 2.Pump On/Off Switch
3. Electric Door Open Switch 3. Electric Door Open Switch 3. Electric Door Open Switch
4. Electric Door Open Switch 4. Electric Door Open Switch 4. Electric Door Open Switch
5.All the red and green lights needed for the switches. 5.All the red and green lights needed for the switches.
6.E-stop 6.E-stop
Water Capacity 0.8ton  1.7Tons 2.5 Tons
Package Plywood Case
Net WT 150kgs 250 KGS 350kg
Gross WT 190kgs 320 KGS 550kg
Package Size L: 130CM X W: 110CM X H: 145CM L: 250CM X W: 110CM X H: 145CM L: 310CM X W: 110CM X H: 145CM
L: 51.2 Inch X W: 43.3 Inch X H: 57.1inch L: 98.4 Inch X W:43.3 Inch X H: 57inch L: 122.0 Inch X W:43.3 Inch X H: 57inch


Detailed Photos


Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank
Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank

Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank
Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank




Why Choose Us

Chapter 1: Pretreatment of Products Before Hydro Dip
Chapter 2: What kind of paint is used in hydro dipping?
Chapter 3: Which material must be sprayed base coating?
Chapter 4: How to prepare to hydro dip?
Chapter 5: How to distinguish the right side of hydrographic film touching the water?
Chapter 6: How to lay the hydro dipping film on the water?
Chapter 7: When to start to spay the activator?
Chapter 8: How many activators spray to the dip film?
Chapter 9: How does hydro dipping work?
Chapter 10: How long to change the water in the hydro dipping tank?
Chapter 11: How to wash after hydro printing?
Chapter 12: How to deal with the defective product by trimming?
Chapter 13: How to rework defective products?
Chapter 14: How to dry the dipped products after dipping and top coating?
Chapter 15: The dip painting method for top coating:
Chapter 16: The instructions on finish coat application
Chapter 17: How to properly use and maintain the spray gun?
Chapter 18: How to do Quality Control and Packing after finishing the paint dipping process?
Chapter 19: The reason and solutions for defects in the transfer printing process
Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank
TSAUTOP® hydro dipping tank is easy to install and operate. The electrical wire connection is simple. Each wire sticks a number, you connect the wire to the number. We supply detail manual book. We have different dimensions of hydrographic tanks, you can choose the suitable one according to your working items.

4) Have passed the SGS authentication by Alibaba. (Please kindly refer to the attachment with many thanks).
5) There are economic series and high-level series of wraps in our factory to meet different customers' demands.
6) Customized service: the outer cartons and backing paper could be made with your customized designs.
7) No warehouse storage risk for you. Our warehouse is your warehouse.
8) Besides the products, we also have a professional sales team to give you good marketing suggestions.
Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank

Certifications


Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank
Tsautop CE Certificated Hydrographic Rinse Station Hydrographic Rinse Tank


FAQ



1. What is water transfer printing?
Water transfer printing, often referred to as hydrographic, immersion printing, camouflage dipping, hydro imaging, and cubic printing, is a method of surface decoration in which complex graphics, such as wood grain, carbon fiber, camouflage, geometric patterns, etc., are applied to the surface of a three-dimensional product. Large-scale all-terrain vehicles, automobile dashboards, little items like bicycle helmets, and other automotive trim are all decorated with the use of the water transfer printing method. In addition to plastic, fiberglass, wood, ceramic, and metal, films can be applied to all kinds of substrates.


2. How long-lasting is water transfer printing?
We prefer to let our goods do the talking. Automobile, camera, and electronic manufacturers, who demand the highest standards of quality and longevity, are some of our biggest clients. Many of the components we make live most of their lives in the sunlight. We utilize an automotive-grade clear coat that is made to resist the elements and the test of time.

3. How challenging is it to learn the procedure?
An extra two to three weeks are typically needed to fine-tune the production line after the initial 24-hour training session.

4. What kind of equipment is needed to print films using immersion?
To complete the process of water transfer printing, tanks (manual or automatic), a washing station, an oven, and a spray booth are needed.

5. Is a wash station necessary for hydro dipping?
Yes, washing machines are required to remove the subject after PVA film has been used to transfer the decorated portion.

6. Do painted pieces need to be dried in an oven?
Yes, it is best to dry by oven because, by nature, dust would cover the subject as it dries. The oven temperature for plastic should be between 50 and 70 degrees.

7. What size sprayer would you suggest using for hydrographics?
For activators, a high-quality, precisely calibrated spray gun is required to operate with it. We advise 0.8-1.3mm, not over 1.3mm.

8. Do you operate as a manufacturer or a trading firm?
We are a WTP manufacturer in China with 20 years of expertise.

9. May I purchase all of my water transfer printing supplies from you?
Yes, we can manufacture and provide films, activators, base primers, clear coats, other chemicals, WTP machines, hydro-dipping processes, technology, and training.

10. May I give you dipping products so that you may assist me in completing my water transfer printing?
Yes, our business can transfer various goods thanks to its two water transfer printing production facilities in Zhejiang Province. Send your items to our factory from your Chinese supplier, and we will handle all processing.
