Basic Info.
Product Description
(1) KPX series are more safe and flexible.
(2) It has no strict requirement for the construction of the railway
(3) No limit of running distance
(4) Safe and convenient operation for there is no wire outside the car
(5) Adjustable speed
★Working principle:
This kind of Rail Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the "S"and arc-shaped railways.
★Suitable:
The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc.from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc
★Technical data:
| Model | KPX-50 |
| Rated Load(t) | 50Ton |
| Table Size(mm) | 3600*2000*500 |
| Wheel Base(mm) | 2600 |
| Rail Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 300 |
| Wheel Quantity | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 0-25 |
| Motor Power | 1.6 |
| Battery Capacity(Ah) | 160 |
| Battery Voltage(V) | 48 |
| Running Time When Full Load | 4.8 |
| Running Distance for One Charge(Km) | 7.2 |
| Max Wheel Load(KN) | 42.6 |
| Reference Weight(t) | 4.2 |
| Recommended Rail Model | P18 |

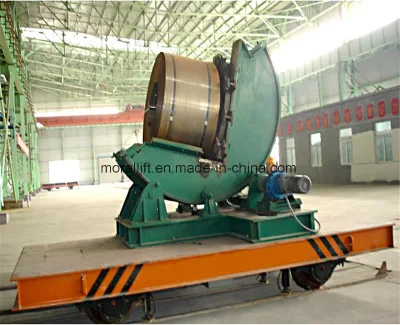

★Detailed images:
