Basic Info.
Product Description
hot-dip galvanizing wire production line
Production Process★★★★★
Automatic spool wire pay-off system→ Natural gas online annealing furnace → Overflow water cooling cleaning → Environmental protection pickling → Overflow water cleaning → Auxiliary galvanizing → Baking board drying treatment → Hot dip galvanizing → Clean → Water cooling → Trunk wire take-up system

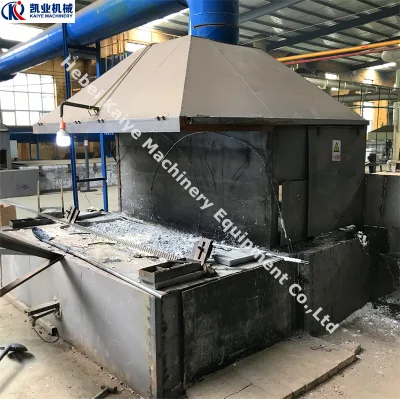

| (1)Zinc ingot★★★ We can provide zinc ingots, and customers can also purchase zinc ingots from China or their own countries. | (2)Zinc pot★★★ Zinc pot is welded with 08 steel zinc pot special plate and has natural gas external heating structure. The temperature of zinc pot is controlled by corrosion-resistant thermocouple. |
| Hot dip galvanized wire production line specifications | |
| Wire diameter | 0.9--1.6 mm |
| Zinc coating thickness | 30--60 g/m² |
| Number of wires | 40--70 line |
| Wire spacing | 30 mm |
| Annealing method | On line annealing |
| Zinc layer control | Wipe system |
| Wire pay-off system | Wire spool |
| Wire take-up system | Elephant trunk or inverted coils type |
Dear all my friends and clients:
Our production line have all the features of the normal machine , besides we have our core advantages with the new technology.
It adopts natural gas eye brick annealing furnace, box steel structure, segmented bolt assembly of furnace body, welded steel structure of furnace body shell, good overall sealing performance, segmented assembly, reducing on-site installation time.
Turbulent smokeless pickling is an advanced pickling technology. The steel wire cleaning process is in a completely closed pickling space, which is suitable for the rapid cleaning process of steel wire and meets the speed requirements of hot galvanizing.
| (3)Water cooling tank★★★ The cooling tank is used to control the temperature when the steel wire enters the pickling tank, ensure the stability of pickling tank workers and clean the impurities on the steel wire surface. | (4)Water cleaning tank★★★ The secondary overflow cleaning method is adopted to eliminate the residual impurities and residual liquid in the steel wire cloth. The cleaning room is made of 20m thick high-strength PP material. |
| (5)Wire drying★★★ The drying of wire rod is completed by heating the flue gas in the baking plate, so as to achieve the effect of energy saving. | (6)Control cabinet★★★ Each process has an independent control system, which is easy to operate and has clear display. |
The finished hot-dip galvanized wire can be weighed directly and wrapped with plastic film.
< Wire pay-off system >
The I-wheel paying off adopts a damping paying off frame, and the tray is equipped with a constant tension device to control the paying off tension, so as to make the steel wire walk smoothly and stably.
< Wire take-up system >
The take-up system adopts elephant trunk take-up machine, and the winding is stable. The diameter of the take-up drum can be customized.
Factory History♦♦♦♦♦
Hebei Kaiye Machinery Equipment Co., Ltd., founded in 2002, is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery.
Our company has been developing smoothly and quickly and now we have more than 150 employees.We can provide high quality machinery and excellent service.
Factory R&D Team♦♦♦♦♦
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Factory Customer★★★★★
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers are available to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
