Basic Info.
Model NO.
pppl
Rhythm
Flow Production Line
Production Scope
Product Line
After-sales Service
Yes
Energy Sources
Water, Electricity, Gas
Strip Thickness
0.2-2.5mm
Strip Width
500mm-1500mm (Max)
Transport Package
Standard Seaworthy Package
Specification
steel
Origin
China
Production Capacity
400000tons
Product Description

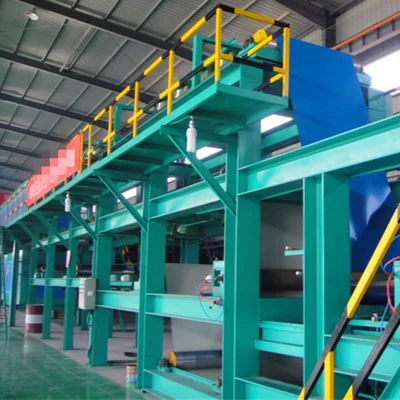

1500mm 400 thousand Pickling line
Technical Specification
1.Product and capacity
1)Product specification
Material: Low carbon steel and middle carbon steel
Steel No.: SPCC, SPCD, SPCE, SS400, Q195, Q215 and Q235, etc.
Delegated steel No.: Q215
Coil inside diameter: D=Φ610mm
Coil outside diameter: D=Φ1100~Φ2050mm
Strip width: 1000~1500 mm
Strip thickness: 1.2~3.0mm
Max. coil weight: 25MT
Mechanical property: σs≤360N/mm2
Quality requirement: According with the current standard stipulation of China.
1.2.Production capacity: 350.000 ton
1.2.1. Line parameter
Total length of the line: L≈100m
Max. linear speed (equipment/ processing) : 110m /100m/min
Threading speed: V=15m/min
Specification of the pickling line
2.1. General introduction
This pickling line is pull-push type and adopts the advanced shallow tank turbulent flow pickling technology. The line provided is mature and reliable and proved by producing practice.
.
Please contact us if you need any further information.
Technical Specification
1.Product and capacity
1)Product specification
Material: Low carbon steel and middle carbon steel
Steel No.: SPCC, SPCD, SPCE, SS400, Q195, Q215 and Q235, etc.
Delegated steel No.: Q215
Coil inside diameter: D=Φ610mm
Coil outside diameter: D=Φ1100~Φ2050mm
Strip width: 1000~1500 mm
Strip thickness: 1.2~3.0mm
Max. coil weight: 25MT
Mechanical property: σs≤360N/mm2
Quality requirement: According with the current standard stipulation of China.
1.2.Production capacity: 350.000 ton
1.2.1. Line parameter
Total length of the line: L≈100m
Max. linear speed (equipment/ processing) : 110m /100m/min
Threading speed: V=15m/min
Specification of the pickling line
2.1. General introduction
This pickling line is pull-push type and adopts the advanced shallow tank turbulent flow pickling technology. The line provided is mature and reliable and proved by producing practice.
.
Please contact us if you need any further information.
