Basic Info.
Model NO.
WG series
Load Capacity
5m³/8m³
Output Capacity
>1.2t/Min
Motor
18.5kw
Operating Pressure
0.19mpa
Discharge Pipe Dia.
100mm
Powder Remain Ratio
Less Than 0.4%
After-Sales Service
Overseas Service Center with Sufficient Engineers
Warranty
One Year
Transport Package
Standard Packing for International Transport
Specification
ISO9001: 2008 standard
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
8428200000
Production Capacity
100 Sets Per Month
Product Description
Why would you use this equipment?

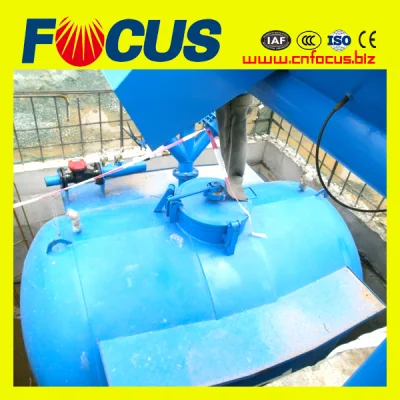

FOCUS cement pneumatic conveyor (cement horizontal feeder or cement charger) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology. It is widely applicable in remote construction sites (concrete batching plant) where bulk cement carrier(truck) is not reachable, whereas bulk cement or bag cement are much available.
What are the main features of WG series cement feeders?
1. It is pneumatic powder conveying equipment with advanced structure, adopting fluidized pressure delivery technology and unique fluidized bed design;
2. Applicable to transport cement, grain, coal-ash, lime powder, barite, powder resin and other non-sticky or granular materials, high blow-off efficiency;
3. The discharging point is adapted for alternating with bulk cement carrier(truck carrier), main components and spare parts are interchangeable between those two kinds of equipment;
4. Large capacity, high utilization, convenient installation and operation, light and compact designed, very popular in concrete batching plants for feeding powder materials (cement, fly-ash etc. ) into cement silos.
FOCUS cement pneumatic conveyor (cement horizontal feeder or cement charger) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology. It is widely applicable in remote construction sites (concrete batching plant) where bulk cement carrier(truck) is not reachable, whereas bulk cement or bag cement are much available.
What are the main features of WG series cement feeders?
1. It is pneumatic powder conveying equipment with advanced structure, adopting fluidized pressure delivery technology and unique fluidized bed design;
2. Applicable to transport cement, grain, coal-ash, lime powder, barite, powder resin and other non-sticky or granular materials, high blow-off efficiency;
3. The discharging point is adapted for alternating with bulk cement carrier(truck carrier), main components and spare parts are interchangeable between those two kinds of equipment;
4. Large capacity, high utilization, convenient installation and operation, light and compact designed, very popular in concrete batching plants for feeding powder materials (cement, fly-ash etc. ) into cement silos.
| Model | WG5 | WG8 | unit |
| Tank volume | 5 | 8 | m³ |
| Power | 18.5 | 18.5 | Kw |
| Blow-off efficiency | >1.2 | >1.2 | t/min |
| Remain rate | <0.4 | <0.4 | % |
| Operating pressure | 0.19 | 0.19 | mpa |
| Rated transmission capacity | 70 | 90 | t/h |
| Transport distance(vertical) | >50 | >50 | meter |
| Power source | 380v, 50hz, 3 phase | ||
| Weight | 1600 | 1800 | Kg |
| Overall dimension(LxWxH) | 2600x2000x2500 | 3200x2300x2630 | mm |
| Pneumatic source (air compressor) | |||
| Compressor model | WB5.4/2 | WB5.4/2 | |
| Discharge capacity | 5.2 | 6 | m³/min |
| Pressure rating | 0.2 | 0.2 | mpa |
| Air supply weight | 500 | 500 | kg |
| Air supply dimension(LxWxH) | 1300x714x916 | 1300x714x916 | mm |
| Motor | Y180M-4-B3 | Y180M-4-B3 | |
