Basic Info.
Model NO.
FHAS
Customized
Customized
Condition
New
Coating
Epoxy Coating
Visual Window
Anti-Explosive Glass
Voltage
220V/50Hz
Structure
Standard
Fittings
Lab Faucet, Gas Cork, Cup Sink, Sockets
Transport Package
Wooden Case Package
Specification
1200*850*2350mm/1500*850*2350mm/1800*850*2350mm or
Trademark
MonchiLab
Origin
Guangdong, China (Mainland)
Product Description
Guangzhou Monchi Lab Technology Co., Ltd
is a ONE STOP SERVICE provider in the field of lab furniture,
offering a comprehensive portfolio of products and services to meet the lab construction needs.

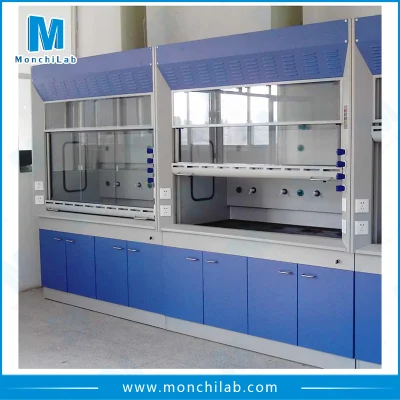

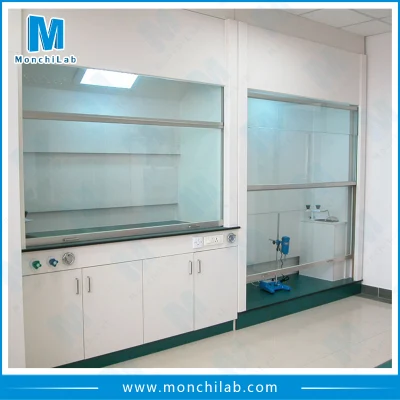

!!! Full Steel Fume Hood Wholesale !!!
Laboratory Fume Hood have the characteristics of strong acid and alkali resistance and anti-corrosion.
It is appropriate for various of high clean laboratory, for example:
medicine laboratory, food laboratory, semiconductor laboratory, trace metal laboratory, biology laboratory,
and it is widely applied in chemical, medical, vehicle, steel factory, university and scientific research institution, etc.
SPECIFICATION:
Cabinet: used 1.2 mm thick of cold-rolled steel sheet production.all the steel parts by pickling,
phosphatizing treatment surface by the epoxy resin powder coating .
Working Tops: Laminated / Phenolic Resin/ Epoxy Resin/ Stainless Steel / Ceramic/Marble .
Sash: With blast proof glass lined with glue for the front viewing window,
the glue sticks the broken glass in case of glass breaking, to ensure the safety of the operator.
Baffle: Electronically controlled center flowing guide can be adjusted with its mouth size according to the amount of smoke,
to ensure a free smoke driving away.
Electronical Control Panel: set up to the front face for easy operate.
The applying of touching switches upgrade the product class degree to automatic control level.
Hinge: DTC105º alloy hinges / 304 # stainless steel hinges
Sink: Imported PP integrate molded sink to be acid and alkali resistance.
Faucet: single water faucet in white color,faucet mouth is made of brass in fairly sharp shape.
Other Accessories:
- Modular electric sockets panel and control devices
- Removable painted metal plugging (outside)
- Two tubes fluorescent lamp (LED on request)
TECHNICAL DATA:
| Model | FHAS-1200 | FHAS-1500 | FHAS-1800 |
| Size(W*D*H) | 1200*850*2350mm | 1500*850*2350mm | 1800*850*2350mm |
| Average Wind Speed | 0.3-0.6m/s adjustable | ||
| Noise Level | < 60dB(A) | ||
| Exhaust air rate | 1500-3000m3/h | ||
| Opening height | 20-750 mm | ||
| Luminance | >300LX | ||
| Power | 220V/50HZ | ||
| Motor power | 0.5-1.1KW | ||
| Socket | 10-15 | ||
| Remark | Remote control, sterilization etc, available | ||
Laboratory Fume Hood is designed for strong corrosive chemicals, pharmaceutical storage and anti-leakage.
Applicable to a large number of drugs or drugs in the laboratory classification of orderly storage.
Laboratory Fume Hood Ventilation System
