Overview

Basic Info.

Model NO.
FRP Chemical Vertical Tanks
Product Name
FRP Chemical Vertical Tanks
Keywords
Vertical Fiberglass Stock Tank
Certificate
ISO9001
Shape
Round Tank
Raw Material
FRP/GRP
Model
Vertical
Capacity
Customizable
Key Selling Points
Easy to Operate
Test Pressure
1.84MPa
Usage
Storage, Transportation
Weight
1t, Variety
Color
Green or Customized
Surface Treatment
Smooth Surface
Eco-Friendly
Yes
Processing Service
Cutting
Transport Package
Pallet
Specification
DN600-DN15000mm
Trademark
GJ
Origin
China
HS Code
8424899990
Production Capacity
10000set/Year

Product Description

Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank
Product Description

Vertical FRP Tanks, Also Known As Vertical FRP Vessels Or FRP Vertical Tanks, Are A Kind Of Vertical Nonmetallic Container With A Circular End Cap And A Flat End Cap. Featured By Excellent Corrosion Resistance, High Strength, Lightweight And Long Service Life, FRP Vertical Tanks Are Widely Used For Storing Sulfuric Acid, Hydrochloric Acid, Gasoline, Asphalt, And Other Corrosive Media.

In Addition, FRP Vertical Tanks Can Be Designed Flexibly To Meet The Specific Need Of Different Industries Including Chemical, Environmental Protection, Food, Pharmaceutical Industries, Etc.FRP Vertical Tanks Occupy A Small Footprint Area And Commonly Work In Clusters To Achieve Amazing Storage Capacity In Limited Space.

The Shape And Structure Of The FRP Vertical Tank Is A Cylinder Placed Upright And Vertically, The Bottom Is A Flat Bottom, Which Fits On The Ground, And The Top Is An Elliptical Or Conical Head.





Advantage



(1) Lightweight And High Strength
The Relative Density Is Between 1.5 And 2.0, Only 1/4 To 1/5 Of That Of Carbon Steel, But The Tensile Strength Is Close To Or Even Higher Than That Of Carbon Steel, And The Specific Strength Can Be Compared With High-Grade Alloy Steel.


(2) Good Corrosion Resistance
FRP Is A Good Corrosion-Resistant Material, And It Has Relative Resistance To The Atmosphere, Water, And General Concentrations Of Acids, Alkalis, Salts, And A Variety Of Oils And Solvents.


(3) Good Electrical Performance
It Is An Excellent Insulating Material Used To Make Insulators. It Can Still Protect Good Dielectric Properties Under High Frequency. It Has Good Microwave Permeability And Has Been Widely Used In Radomes.


(4) Good Thermal Performance
FRP Has Low Thermal Conductivity, 1.25~1.67KJ/(M·H·K) At Room Temperature, Which Is Only 1/100~1/1000 Of That Of Metal. It Is An Excellent Thermal Insulation Material. It Is An Ideal Thermal Protection And Ablation-Resistant Material In Instantaneous Ultra-High Temperature Situation And Can Protect Spacecraft From The Erosion Of High-Speed Airflow Above 2000 ºC.


(5) Good Designability

Various Structural Products Can Be Flexibly Designed According To Needs To Meet The Requirements Of Use, And The Products Can Have Good Integrity.

Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank

Internal Structure Of FRP Vertical Storage Tank:

(1) Three-Layer Structure Of The Tank Wall In General, The Glass Fiber Reinforced Plastic Vertical Tank Wall Has Three Layers:
-Inner Lining. With Inner Frame And Airtight Function, The Thickness Is 2.5~3Mm.
-Strength Layer. Bearer Layer
-Outer Layer. The Thickness Is About 0.5Mm, This Layer Has The Effect Of Anti-Aging And Anti-Ultraviolet Radiation

(2) The Top Cover, The Top Cover Of The FRP Vertical Tank Should Not Be Too Thin, And The Load Is Usually Uniformly Distributed According To 1KPa. At The Same Time, The Vertical And Horizontal Cross Ribs Should Be Properly Arranged To Prevent The Top Cover From Partially Collapsing.

(3) The Thickness Of The Tank Wall, Due To The Liquid Pressure In The Tank, The Bending Stress Caused By The Wind Load, And The Compressive Stress Caused By The Self-Weight Of The Tank Change With The Height And Reach A Maximum Value At The Bottom, So The Tank Wall Gradually Thickens From The Top Of The Tank To The Bottom Of The Tank, The Wall Thickness At The Top Of The Tank Generally Does Not Exceed 5 Mm.
Product Parameters

Dimension Table Of FRP Vertical Tank
Vol.(M3)/Dia.(Mm) DN1600 DN1800 DN2000 DN2200 DN2600 DN3000 DN4000
10 5140 4090 3370
20   8030 6550 5460 4000
30       8100 5890 4550
50         9650 7390 4340
80           11630 6740
100             8340
150             12340

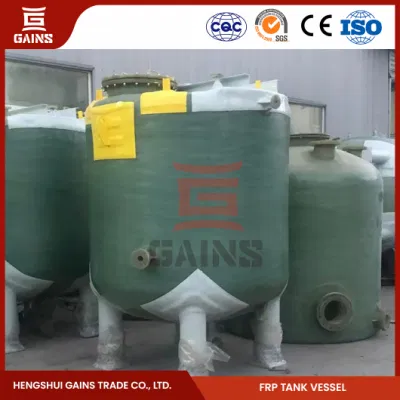

Detailed Photos

Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank

Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank
Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank
Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank



Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank
Hengshui Gains Trade Co., Ltd. is Located In Jizhou City, Hebei Province-Biggest Production Base Of FRP Products And Radiators In China, Combines Advantages Of Local Different Industries, Hengshui Gains Trade Co., Ltd. Consists Of Several Large-Scale Manufacturers Of, Depends On Customers' Different Requirements, We Recommend And Choose A Suitable Manufacturer To Satisfy And Fulfill, We Can Provide Design, Supply, Shipping, Installation, Commissioning, Etc One-Station Service Or Technical Consultation Service. From Our Company To Tianjin Seaport Is 300Km, To The Nearest Airport, Is 180Km, Nearest High-Speed Train Station Is 90Km.

Our Core Business And Services Are:

1, FRP/GRP Products:  FRP Vessel & Tower, FRP (Motor) Pipe, FRP Cooling Tower, FRP Grating, FRP Electrolytic Cells, FRP Septic Tank
2, The Whole Set Of FRP Products Production Line And Technology: Computer Control Filament Winding Machine, FRP Protrusion Production Line, Molded FRP Products Production Line
3, Radiator
4, Electrical Cable
5, Sluice Gate Etc Facilities For Water Conservancy
6, Rubber Bridge Bracing
7, The Whole Set Of Chemical-Making Equipment & Technology: Mannheim Process Potassium Sulfate-Making Equipment & Technology, Titanium Dioxide Production Equipment & Technology


Gains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage TankGains FRP Solvent Storage Tank Suppliers 3072 FRP Vessel China Sulfuric Acid FRP Storage Tank

    FAQ

    Q1: Why Choose Gains Trade?
    A1: 15+ Years Experience In FRP Industries, Have Rich Experience That Provides Different FRP Products To Fluor, Technip, Dossan, Arkema, Veolia, Wison, Dupont, Etc.

    Q2: Can You Choose The Correct Raw Material For Our FRP Product?
    A2: Absolutely, Pls Provide Medium & Concentration, Temperature, Pressure, Etc Technical Parameters, PP/FRP, PVC/FRP, PVDF/FRP, Etc Pipe/Tank/Tower Also Are In Our Supply Scope.

    Q3: What's Your Delivery Time?
    A3: We Have Several Manufacturing Plants, And Each Plant Has A Design Department And Production Facilities, We Can Finish Your FRP Products In The Shortest Time.

    Q4: Which Port Is Nearest To Your Plant?
    A4:From From Our Plant To Tianjin Seaport Is 300 km, To Shijiazhuang/Jinan Airport Is 150 km, And To Hengshui, High-Speed Train Station Is 30 km.

    Q5:How Can We Guarantee The Quality?
    A5:Always A Pre-Production Sample Before Mass Production;
    Always Final Inspection Before Shipment;

    Q6:Are You A Manufacturer Or A Trading Company?
    A6:We Are A Manufacturer, Providing OEM & ODM Services.
