Product Description

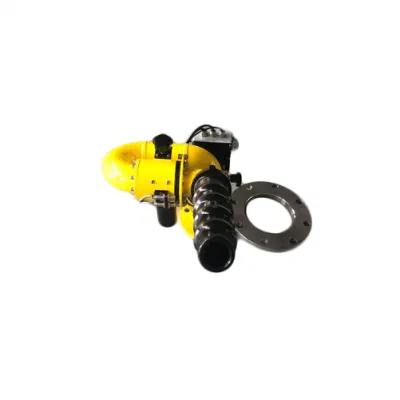

This monitor is made of stainless steel which is widely used on water truck fire truck, boat, chemical factory, airport, tower, wharf etc. The key parts are selected. The motors are imported from USA and Taiwan. The sensors are imported from Germany. Each Monitor is well tested before delivery. All the monitors are CCC certified.
Features:
1. Good Material: Stainless steel monitor body and aluminum hard anodized nozzle.
2. Adjustable Nozzle: The flow rate is adjustable among 20-30-40L/S.
3. Selected key parts: Motors are imported from USA and Taiwan. Sensors are imported from Germany.
4. Remote Control is available.
5. Water way is 2.5'' which is big enough for the max flow 40L/S.
6. Stream Sharper is available to make sure good performance.
7. Control box works on off road.
8. The warranty is 2 years.
Specification:
Weight in Kg Incl. Nozzle Approx. | 24KG | Range of Motion | +90°/-55°vertical , 360°Horizontal | |
| Other Degrees Adjustable | ||||
Material | Body Stainless 304(standard) Stainless 316 (optional) | Speed (of high speed version) | 24°/sec rotation , 10°/ sec vertical | |
| Aluminum Hard Anodized Nozzle | Power Consumption Max. | 24V @ 7.5A | ||
| Gear bronze | Power Supply | 24 VDC | ||
Flow Range @ 7 bar (Max recommended) | Nozzle Model: AN40 - 24Vdc Jet Spray Nozzle - Adjustable | Reaction Force | Up to 900N | |
| Mechanical Installation | Support must withstand 4000 N of force | |||
| flow rates of:1200LPM-1800LPM-2400LPM@100PSI | Options | Network, radio remote , aux control etc. | ||
| Max. Reach @ 7 bar | 60M |
Type : PSKD30-ST
Flow Range: 20-30-40L/S (320GPM-630GPM), Adjustable
Working Pressure: 6 bar~ 8 bar
Max Reach @ Max Flow: 60M (148-180ft)
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle : 120°
Turning speed : 18 degrees/sec
Material (body) : 304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear) : hardcoated anodizing aluminum
Material (nozzle) : Alumimun
power supply : 12/24VDC or 100-230VAC
Power Consumption normal/Max : 50W/150W
Weight incl. nozzle : appox 20kg
Cable Length Monitor- CPU : 5m
Cable Length Joystick-CPU : 5m standard/ other length available
Pump requirement for minimum performance : 40L/S@ 6 bar
Pipe dimensions for installation: 2-2.5 Inch
Monitor Inlet : 2.5" male BSP or DN65 flange
Monitor Outlet : 2.5 inch (50mm)
Water way size: 2-1/2 inch
PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL (OPTIONAL
System Components Description:
| NAME | FIRE MONITOR BODY | 24Vdc ELECTRIC JET SPRAY NOZZLE | JOYSTICK |
PART IMAGE | |||
| PART# | PSKD30CB | AN40 | CTRL - J01 |
BRIEF DES- CRIPTION | 24Vdc Electric Remote Controlled | Selectable Flow Rates Of | Up-down-left-right,straight stream/fog function |
| 2 ½ "NH outlet | 1200 LPM 1800LPM 2400LPM @ 100PSI | Power indicator | |
| Stainless steel 2 ½" waterway | IP67 standard seal actuator | Aluminum base | |
| Bronze worm , stainless steel gear | Fixed fog teeth | ||
| 2 ½" ANSI 150# Inlet flange | |||
| NAME | CONTROL UNIT | Straight Bore Branch Pipe Nozzle OPTIONAL | CABLES |
PART IMAGE | |||
| PART# | CU-01 | SN-32 | CTRL-CB01 / CTRL-CB02 |
BRIEF DES- CRIPTION | Aluminum cover | Hard Anodized Stacked Tip Branch Pipe Nozzle c/w Inbuilt Stream Shaper - 32mm End Nozzle Orifice Tip | Joystick to Control Unit cable- 5m length |
| IP67 Standard sealed | Monitor to Control Unit cable- 12m length | ||
| 2 ½" NH Female Inlet | Other length cables please specify | ||
