1000W 1500*3000 Stainless Steel Aluminum Copper Sheet Metal Industrial Laser Equipment Metal Plate Tube Pipe Automatic CNC Fiber Laser Cutting Machine

laser cutting machine


Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.





Applicable material range:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickling plate, galvanized sheet, brass,copper and other metal materials.

Industry application:
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing and other manufacturing and processing industries.

I .Advantages of fiber laser cutting machines:
1.Excellent beam quality: smaller focusing spot, finer cutting lines, higher work efficiency and better processing quality;
2.Extremely high cutting speed: twice the same power CO2 laser cutting machine;
3.High stability: using the world's top imported fiber laser, stable performance, the service life of key components can reach 100,000 hours;
4.Extremely high electro-optical conversion efficiency: Fiber laser cutting machine is three times more efficient than CO2 laser cutting electromechanical light conversion,  energy saving and environmental protection;
5.Very low cost of use: the power consumption of the whole machine is only 20-30% of the same CO2 laser cutting machine;
6.Very low maintenance costs: no laser working gas; fiber transmission, no need for reflective lenses; can save a lot of maintenance costs;
7.Easy operation and maintenance of the product: optical fiber transmission, no need to adjust the optical path;
8.Superior flexible light guiding effect: compact size, compact structure and easy flexible processing requirements.

II .features:

1.The combination of cutting-edge fiber laser technology and digital control technology represents the most advanced level of laser cutting;
2.Professional laser cutting machine CNC control system, computer operation, can ensure the cutting quality, make the cutting work more convenient, and the operation is simpler;
3.Machine tool gantry structure, high damping bed, good rigidity, can withstand high speed and acceleration;
4.Exchange workbench configuration, shorten standby time, and effectively improve work efficiency by more than 30%;
5.The machine adopts imported AC servo system drive and imported transmission system. The machine tool movement mechanism adopts imported gear rack transmission and linear guide rail to ensure high speed, high precision and high reliability of the equipment.
6.The rack and the guide rail adopt full-shield protection device to prevent oil-free friction movement and dust pollution, improve the service life of the transmission parts and ensure the accuracy of the machine tool movement;
7.The laser cutting head is equipped with an imported capacitor non-contact height tracking system, which is sensitive and accurate, avoids collision between the cutting head and the processing plate, and ensures the cutting focus position to ensure stable cutting quality;
8.The laser cutting head can withstand 2.0Mpa gas pressure, high-pressure gas circuit equipment, and improve the cutting ability of hard-to-cut materials such as stainless steel;
9.The machine tool has an automatic partition smoke exhaust system, which has good smoke exhausting effect and low pollution;
10.Small footprint, high system integration, easy operation and maintenance, meeting the needs of 24-hour industrial production;



Main configuration and technical advantages of fiber laser cutting machine
  1. Using the world's top Wuhan Ruike fiber laser and laser power supply
   Our company's fiber laser cutting machine adopts the most advanced laser in China, its performance is stable, and the overall quality of the product is safely guaranteed.
  Fiber laser is a new type of fiber laser developed in the world. It has the advantages of large heat dissipation area, good beam quality and small size. It has obvious advantages compared with bulky gas lasers and solid-state lasers, and has gradually developed into high. Important candidates in precision laser processing, laser radar systems, space technology, laser medicine and other fields.

main feature:
Excellent beam quality (BPP)
Constant BPP over the full power range
A small spot can still be obtained with a long focal length
Electro-optic conversion efficiency >30%
Maintenance free operation
Modular design, "plug and play"
Small size and easy installation
Pump source life > 100,000 hours
Integrated optical-optical coupler, or shutter

Precise beam quality with small divergence angle
Unparalleled product life
   With single-core junction semiconductor pump lasers as the pump source for fiber lasers, all-fiber lasers will have long life characteristics. Therefore, the minimum service life of Wuhan Ruike fiber lasers has exceeded 100,000 hours.
Low power consumption, product maintenance free



2.Fiber-optic dedicated laser cutting head and automatic tracking system
 The original imported fiber-optic laser cutting head and capacitor non-contact automatic tracking system can automatically adjust the optimal focal length to ensure the best cutting effect of the whole board, and avoid material scrapping caused by the problem of focal length variation when the material is not flat.
 Since the cutting head is equipped with a non-contact sensing device, under the control of the system, a stable Z-axis floating function can be realized, which directly eliminates the influence of the unevenness of the plate on the cutting quality, so that the numerical control laser cutting machine has a high cutting yield.

3.Machine tool system
The mobile gantry structure can maintain good stability and shock resistance for a long time; the whole beam is professionally manufactured by professional large-scale enterprises, secondary aging treatment, and precision machining of large-scale gantry milling machine to ensure the rigidity and stability of the machine tool and good dynamic performance. . The equipment has high precision, good rigidity and stable operation.
Machine base: professionally manufactured by professional large enterprises, secondary aging treatment, and large-scale gantry milling machine precision processing, these design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability.
Slag removal system:The lower part of the machine is equipped with a zone collector that automatically removes waste from the production process and collects small parts.
Dust removal system:The workbench is connected by industrial dust collector, which is flexible and convenient. It is dust-collected on site, treated on the spot, and adopts high-power turbine fan. The suction is strong, which can effectively ensure the cleanliness of the air and ensure the clean and tidy production environment. The sound-absorbing material is attached inside, and the noise reduction effect is obvious, so there is no need to worry about noise interference.

4.Transmission system:
It adopts imported gear rack and pinion drive and is guided by double-sided linear guide rails. It also adopts the imported servo motor drive system and adopts Shanghai Jiaotong University to develop CNC system. Its control has stronger stability and better compatibility to ensure Machine accuracy in high-speed motion.




5.Red light indicates:
The fiber laser cutting machine is equipped with a red light collimator that helps the operator to calibrate the laser cutting head anywhere on the board.



6.cooling system:
The fiber laser is equipped with a water cooling system. The temperature of the refrigeration unit is shown by a digital meter. When the water temperature exceeds the specified temperature, the refrigeration unit will automatically cool. When the water temperature is lower than the specified temperature, the refrigeration unit will automatically stop cooling and have an electric heating function.

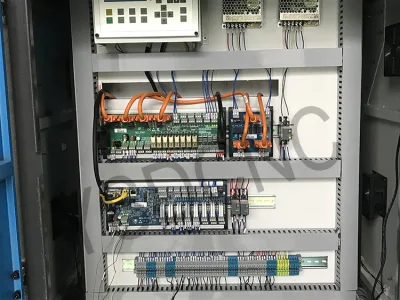

The waterway system of the fiber laser cutting machine mainly consists of two parts: one part is the cooling water coming out of the chiller, and then entering the laser in two ways, one part enters the main part of the laser, and cools it; one way enters the part of the laser electric control box, and carries on it Cool down; return to the chiller after cycling.
